Description

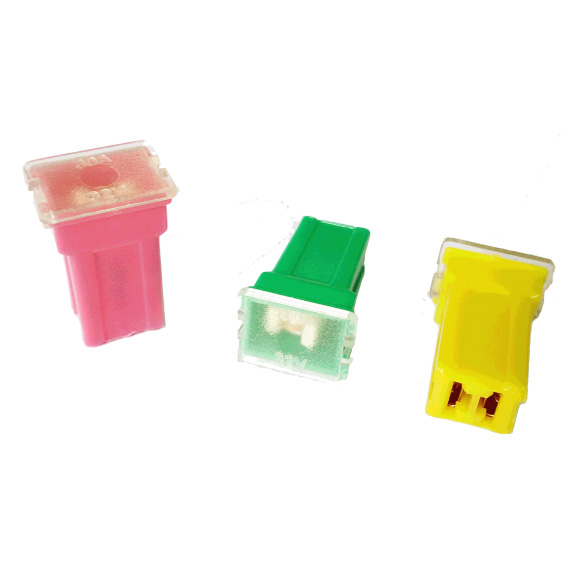

PAL fuses are commonly found on many Japanese and domestic built vehicles.

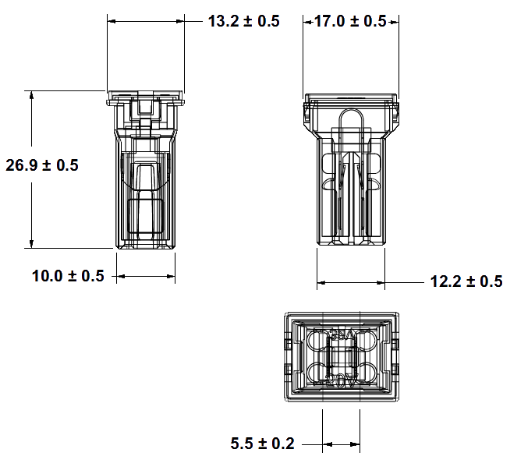

Dimensions(mm)
Specifications
Voltage Rating: 32 VDC
Current Cycling: 24?C
The fuses satisfy the performance requirements after 50% of the rated current is applied for 10,000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40?C to +125?C
Complies with JASO 0612
Time-Current Characteristics
|
% of Rating
|
Opening Time Min / Max (s)
|
|
110
|
14,400 s
|
|
200
|
5 s / 100 s
|
|
350
|
0.2s / 7 s
|
|
600
|
0.040 s / 1 s
|
Ratings
|
Part Number Current
|
Rating (A)
|
Body Color
|
|
FKY293820
|
20
|
LIGHT BLUE
|
|
FKY293830
|
30
|
PINK
|
|
FKY293840
|
40
|
GREEN
|
|
FKY293850
|
50
|
RED
|
|
FKY293860
|
60
|
YELLOW
|
|
FKY293870
|
70
|
BROWN
|
|
FKY293880
|
80
|
BLACK
|
