MINI-小號汽車插片保險絲1A-30A/32V-80V

產品信息

產品類別：車用保險絲|直流保險絲

關鍵詞：MINI,小號汽車插片保險絲

點擊率：

發布時間：2019-07-02 09:54:14

全國服務熱線：13549460265

立即咨詢

產品詳情

小號汽車插片保險絲-----MINI UL CSA

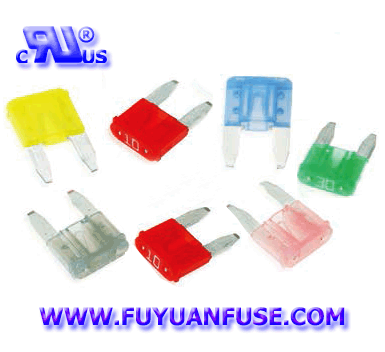

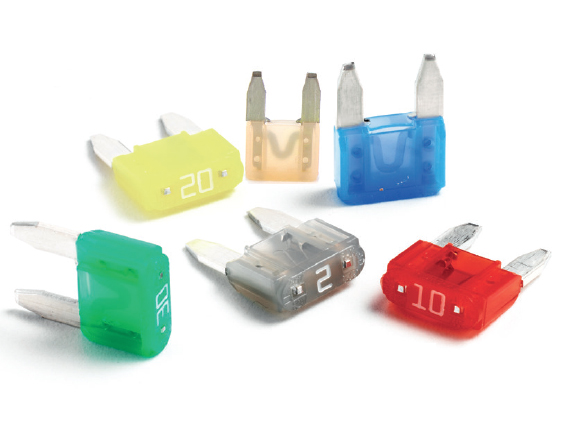

Physical view

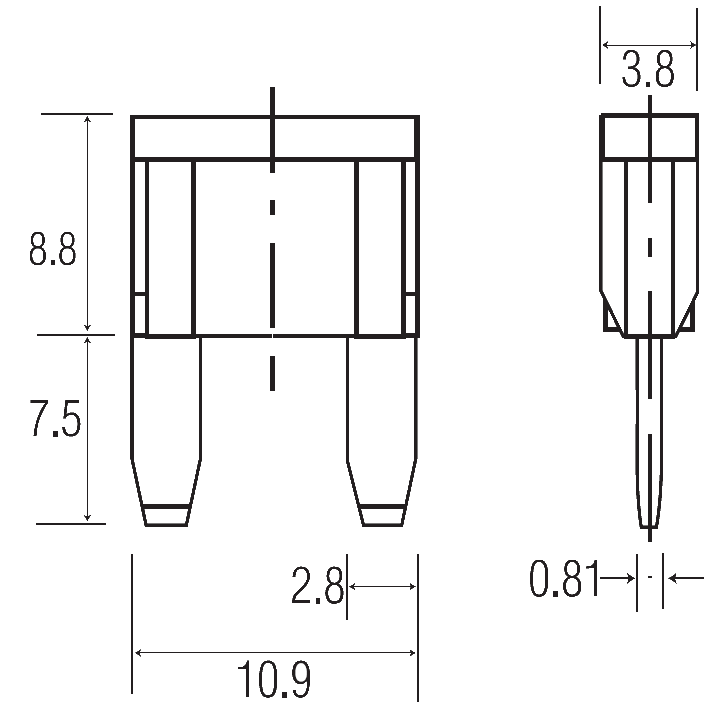

Dimensions (mm)

Specifications
Interrupting Rating: 1000A @ 80 VDC
Voltage Rating: 32-48-58-80 VDC
Operating Temperature Range: -40?C to +125?C
Terminals: Ag plated zinc alloy/Sn plated zinc alloy
Housing Materials: PA66/PC
Complies with: Meets SAE J2077
ISO 8820
UL 248 Special Purpose Fuses

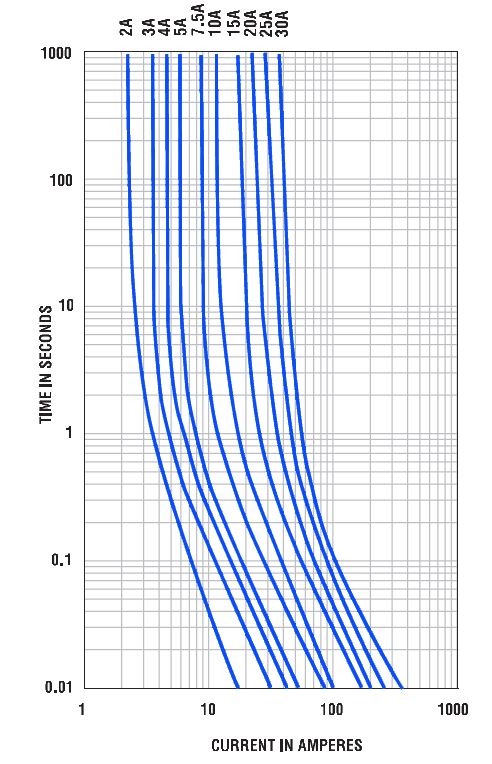

Time-Current Characteristics

% of Rating	Opening Time
% of Rating	MINI	MAX
110	4H	/
135	0.75S	10m
200	0.15S	5S
350	0.080S	0.250S
600	0.030S	0.100S

Ratings

Part Number	Current Rating	Voltage Rating (V DC)	Typ. Voltage Drop	Cold Resistance	I2t	Housing Color
FYMINI-001_	1A	32/48/58/80			0.97A2s
FYMINI-002_	2 A	32/48/58/80	171 mV	55.60 mΩ	2.8 A2s	Tan
FYMINI-003_	3 A	32/48/58/80	153 mV	33.75 mΩ	9.4 A2s	Purple
FYMINI-004_	4 A	32/48/58/80	121 mV	23.48 mΩ	17 A2s	Pink
FYMINI-005_	5 A	32/48/58/80	129 mV	17.75 mΩ	25 A2s	Orange
FYMINI-07.5_	7.5 A	32/48/58/80	135 mV	10.85 mΩ	68 A2s	Tan
FYMINI-010_	10 A	32/48/58/80	108 mV	7.42 mΩ	93 A2s	Red
FYMINI-015_	15 A	32/48/58/80	98 mV	4.58 mΩ	270 A2s	Blue
FYMINI-020_	20 A	32/48/58/80	96 mV	3.21 mΩ	380 A2s	Yellow
FYMINI-025_	25 A	32/48/58/80	86 mV	2.36 mΩ	625 A2s	Natural
FYMINI-030_	30 A	32/48/58/80	87 mV	1.85 mΩ	1130 A2s	Green
FYMINI-035_	3	32/48/58/80	85mV	1.5mΩ	1430 A2s	Purplish red
